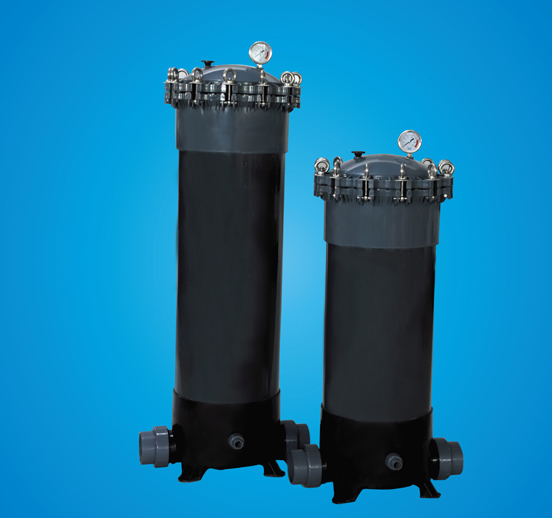

全塑過濾器(UPVC殼體)

8芯&9芯精密過濾器

8芯&9芯精密過濾器

本產品獲得國家實用新型專利證書,專利號為:ZL 201821245100.0

獲得國家發明專利證書,專利號為:200510049195X

已通過0-0.6Mpa打10萬次循環疲勞測試。

It has got the utility model patent,which is issued by the state intellectual property office of the P.R.C. The patent NO is: ZL201821245100.0

It has got the patent of invention. The patent NO is: 200510049495.X

It has achieved 0-0.6 MPa 100,000 times recycle fatigue test sccessfully.

Note:

桶體內安裝各種材質各種精度的內徑為28-30mm:外徑為60-70mm的兩端平壓式濾芯 (或標準222接頭濾芯) 9根或8根。

最高工作溫度: 45℃,頂蓋上預留的排氣閥及壓力表安裝孔的螺紋尺寸為: G1/4" , 配公制壓力表需要訂購轉接頭。

It can install all material; all precision's cartridge 9 PCS or 8 PCS, which I.D. is 28-30mm, O.D. is 60-70mm.

The highest working temperature is 45℃, The size of the two holes in the lid of the filter is G1/4". If the thread of the pressure gauge is metric standard, should add an adaptor.

{dede:field.title/}

產品優勢/Product Merits

  • 1、過濾器采用UPVC材質,部件一次成型, 標準化生產,更換、維修方便。
  • 2、過濾器進出水口在同一水平直線,連接有3” 的由令接頭, 視覺美觀、整齊。
  • 3、過濾器布水采用從過濾器底部中心往上向四周均勻布水,濾芯受沖擊阻力小;頂部裝有排氣閥,便于過濾器中空氣排出。
  • 4、過濾器底部系統與頂部濾芯定位壓緊板均采用一體式設計,濾芯的安裝并壓緊既容易又可避免內漏現象。
  • 5、過濾器封蓋與本體連接采用吊環螺絲法蘭式密封,既確保過濾器完好的密封性能,又給更換濾芯的拆裝帶來了方便和快捷且使過濾器能承受更大壓力。
  • 6、過濾器為UPVC材質成型,具有較強的耐腐蝕性, 能用于不銹鋼不能代替的化工行業,更能體現它的經濟價值和實用價值。
  • 1.All the parts of this series filters are made of UPVC material.
  • 2.The inlet and outlet are in the same line, which connected with the pipe is adopt a 3”union.
  • 3.The distribution system of HPCF filters is distributed from bottom to top. Water is well-proportioned with small strike to cartridges and air is easy to be discharged.
  • 4.The bottom system of HPCF filter is designed together as a whole with the top localizer & closure system.Cartridges are easy to be installed, push down and closed, preventing leaking inside.
  • 5.The lid and the body are connected using eyebolts flange method, Ensure a good seal performance.and ensure the filter can stand higher pressure.
  • 6.HPCF filter is corrosion resistant, It can be used in SS-none-replace field.
